Please verify this is the correct part you are looking for! Product image is for illustrative purposes only and may vary from product shipped. Additional part number(s) and/or application(s) are found below although not all may be listed.
Our major line of parts consists of new, quality aftermarket units which are direct replacements of the original and will function the same or better. We also sell new, OEM units which will be clearly listed as OEM either within the part number and/or under the “Quick Specs” area.
Please contact customer service and we will be happy to help you find the correct part.
-Pin Hole Thru Shaft w/ Woodruff Key
-3.25 in. Dia. Mtg. Ring
-Double ball bearings
-Complete w/ switch & connector strap
-SHAFT TYPE: KEYWAY

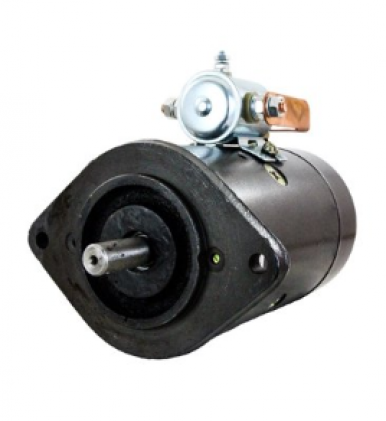

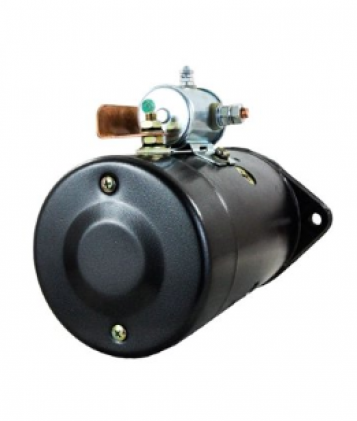

Primer Pump Motor, Mfr Prestolite, 12 Volt, Cw, Pin Hole Thru Shaft W/ Woodruff Key, New, 5196n, Hale 200-0040-00, M-2000, V-1157, V-2068, Vha-445d, Prestolite 46-2155, 46-2244, 46-235, 46-2604, 46-555, 46-557, may4146, may4301, may4301s, MCL-6508s, mcl6225, mcl6225a, mcl6228, mcl6229, mcl6508, mcl6508t, mue6216, mue6316, Western Motors Service W-6599
Application: Hale, Power Wheels Equipment, Purex Corp., Waterous Fire Truck Primer Pumps
OBB Starters and Alternators backs all of our quality units sold on this website with a ONE (1) year warranty,
from original date of purchase. Our warranty covers manufacturer defects, but does not cover any damage caused
for any other circumstances such as installation or mechanical error, weathering, damage due to water, etc.
